Category
Presses – Open Back Inclinable
Manufacturer

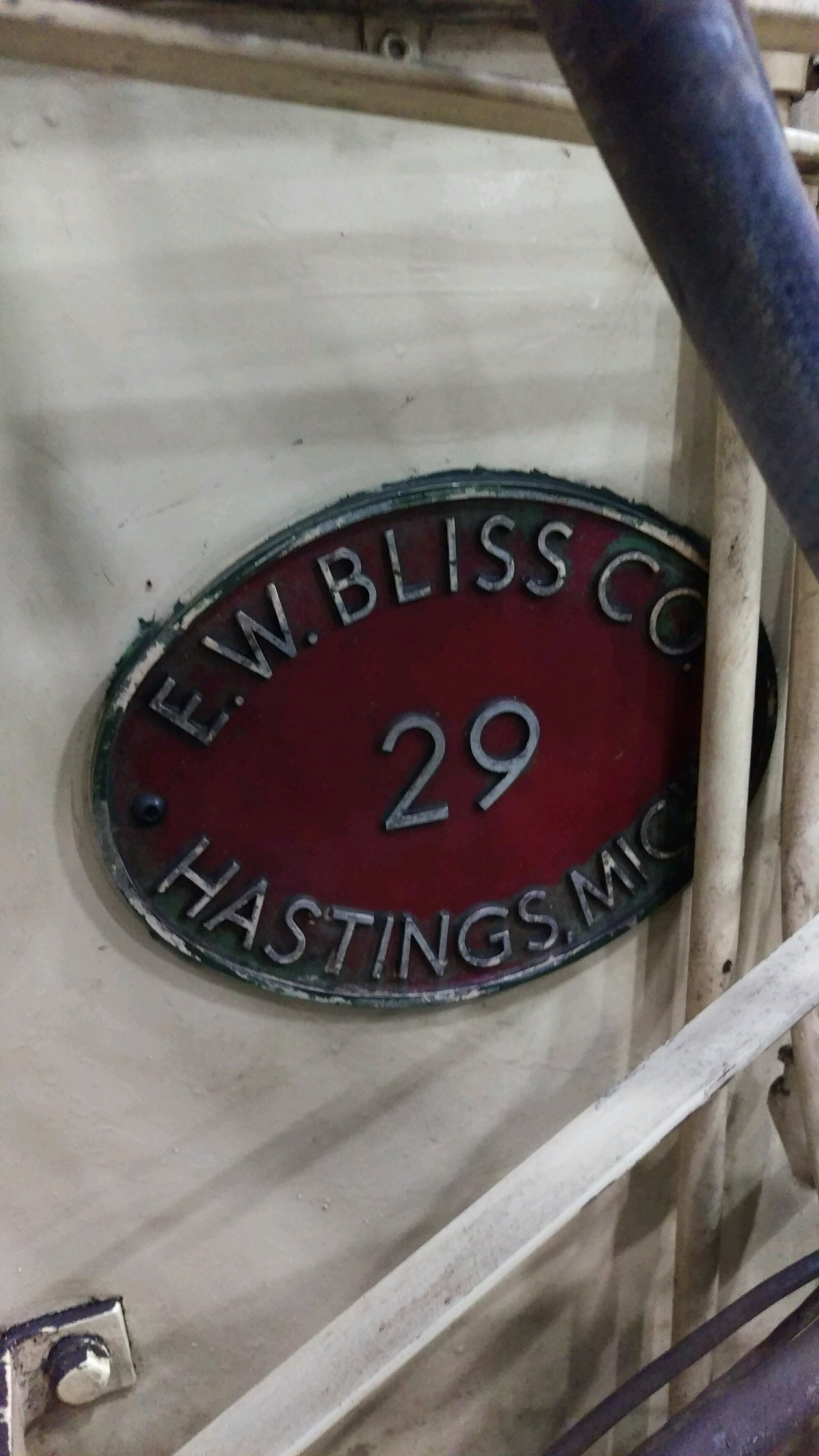

Bliss
Model
29
Serial Number
H50885
Year
1961
Capacity
150.00
ton
136077.70
kg
Stroke
11.00
in
279.40
mm
Slide Area Width
22.00
in
558.80
mm
Slide Area Length
19.00
in
482.60
mm
Slide Adjustment
4.00
in
101.60
mm
Bed Area Width
47.00
in
1193.80
mm
Bed Area Length
30.00
in
762.00
mm
Bed Opening Width
22.50
in
571.50
mm
Bed Opening Length
17.50
in
444.50
mm
Die Height (stroke down, adjustment up)
19.50
in
495.30
mm
Press Speed
30.00
SPM
Motor Power
11.00
hp
8.20
kW
Motor Speed
1800.00
RPM
Counterbalance Type
Air

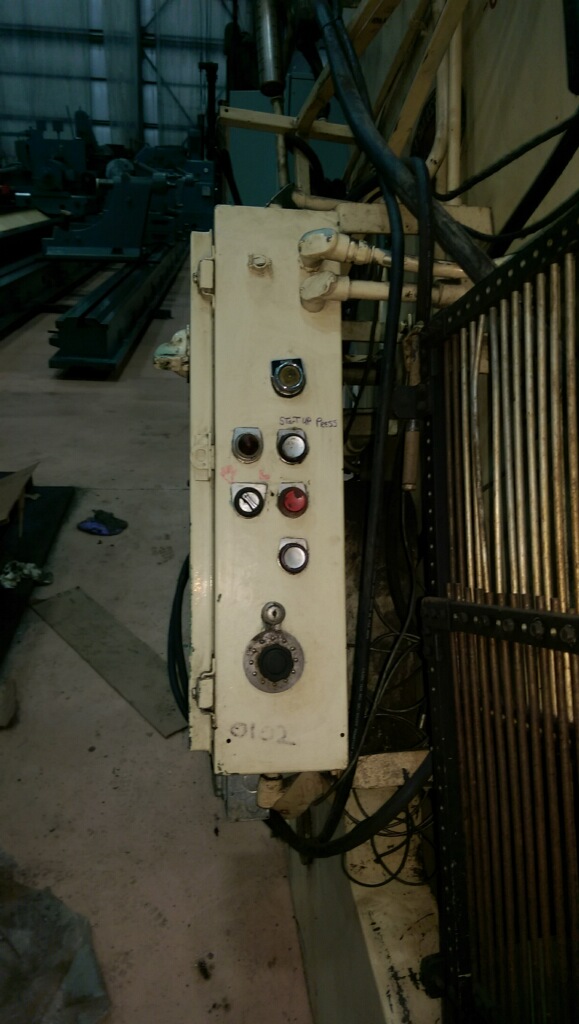

Clutch Control
110 Volt, single phase, 60 Hz
Power
440 Volt, 3 phase, 60 Hz
Machine Length
96.00
in
2438.40
mm
Machine Width
72.00
in
1828.80
mm
Machine Height
150.00
in
3810.00
mm
Machine Weight
40000.00
lbs
18143.69
kg
Condition
Excellent
