Category |
Machining Centers - Vertical |
|||
Manufacturer |
Giddings & Lewis |
|||
Model |
924-25VSP |
|||
Serial Number |
924-0024-87 |
|||
Year |
1987 / 1990 |
|||
Control |
Numeripath 8000-N CNC |
|||
X - Travel |
50.00 |
in |
1270.00 |
mm |
Y - Travel |
52.00 |
in |
1320.80 |
mm |
Z - Travel |
40.00 |
in |
1016.00 |
mm |
Spindle Taper |
#50 ANS |
|||
Spindle Power |
25.00 |
hp |
18.64 |
kW |
Spindle Speed |
40 - 4000 RPM Infinitely Variable |
|||
Table Width |
Special 42" Diameter Tables with Built-In 4-Jaw Combination Chuck |
|||
Table Capacity |
2500.00 |
lbs |
1133.98 |
kg |
Tool Changer / Number of Tools |
Yes - 40 Tools |
|||
Additional |
Optional pallet changer dual Bickford flow thru on stationary base, distance from centerline of spindle to column ways 45.00” (1143.00 mm), pallet top to floor 54.00” (1371.60 mm), collet-type power drawbar, Trabon lubrication system
|
|||
Ways |
Hardened Ways |
|||

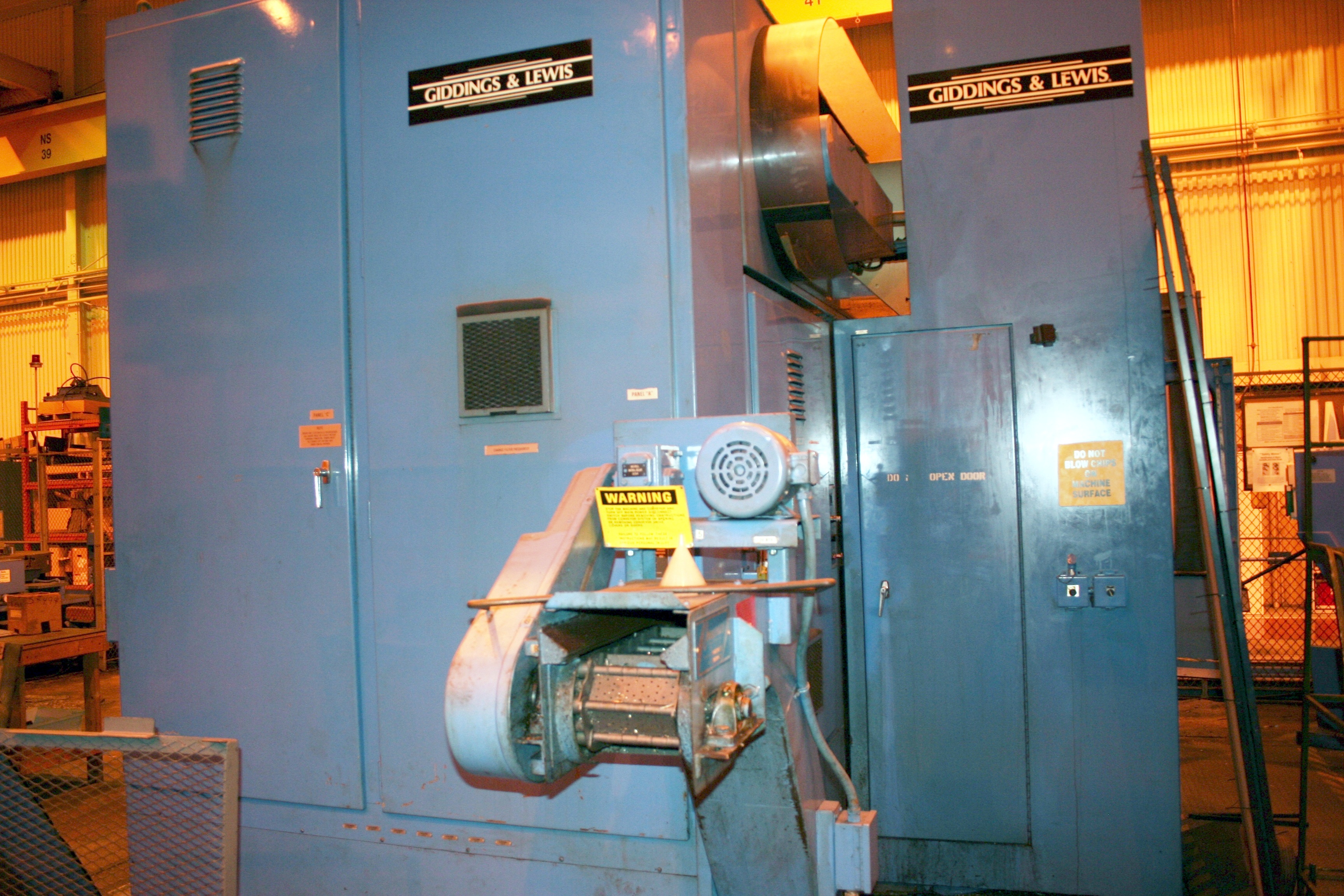

Chip Conveyor |
Yes - 2 Conveyors |
|||
Coolant |
Flood And Programmable Through Spindle |
|||
Condition |
Excellent |
