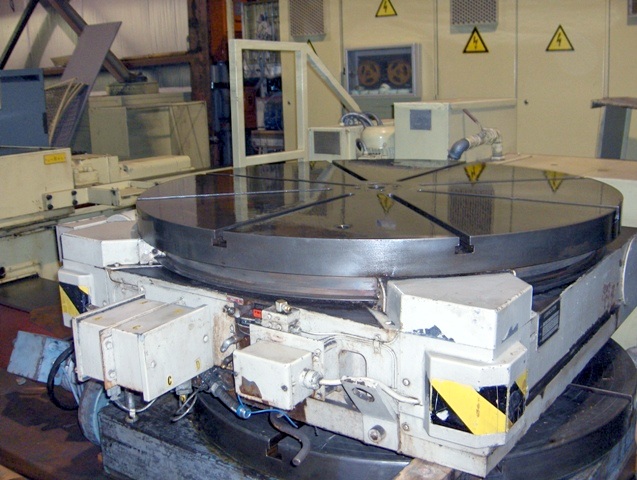

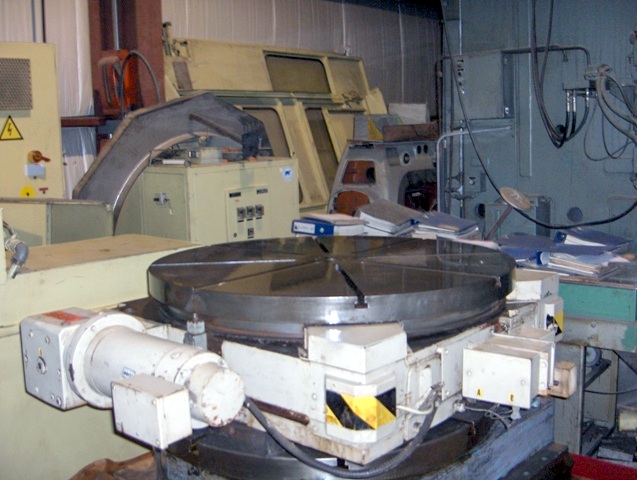

Category |
Tables - Rotary |
|||
Manufacturer |
Producto |
|||
Model |
0140 |
|||
Serial Number |
G690-1 |
|||
Year |
11/1993 |
|||
Table Diameter |
42.00 |
in |
1066.8 |
mm |
Table Capacity |
32000 |
lbs |
14514.94 |
kg |
Base Length |
39.00 |
in |
990.6 |
mm |
Base Width |
39.00 |
in |
990.6 |
mm |
Table Overall Height |
13.00 |
in |
330.2 |
mm |
T-Slot Spacing |
8 Equally Spaced Radial Slots |
|||
Top T-Slot Width |
0.69 |
in |
17.53 |
mm |
Bottom T-Slot Width |
1.25 |
in |
31.75 |
mm |
Table Drive Power |
3.00 |
HP |
2.24 |
kW |
Programmable Angular Resolution |
.001 Degree |
|||
Table Rotational Speed Range |
2 RPM |
|||
Positioning Accuracy |
+/- 4 Arcseconds (with Inductosyn) |
|||
Repeatability |
2 Arcseconds |
|||
Power |
3 ph / 50 – 60 Hz / 200 – 500 V Existing |
|||
Additional |
Parallelism top to bottom: .0004 inches(.01 mm), pilot hole diameter: 1.500 - 1.5005 inch, pilot hole runout: .0002 inch TIR, table top flatness: .0005 TIR, table top radial load rating: 17,000 lbs (7727 kg), table moment rating: 19,800 ft/lbs (26,845 nm), master slot size .812 inch, precision 4-track preloaded ball bearing, table sealed against coolant, chips, and contaminants, base and table of cast iron - stress relieved for long term stability, dual lead worm externally adjustable for backlash take-up, worm drive flood lubricated, Getty's servo drive motor, Farrand precision rotary scale, table machined to accept a Vortec unit, 5:1 planetary gearbox |
|||
Weight |
3700 |
lbs |
1678.29 |
kg |
Condition |
Excellent |
