Category |
Mills – Horizontal Boring |
|||
Manufacturer |
Union |
|||
Model |
BFT 130/6 |
|||
Serial |
11024 |
|||
Year |
1980s / New Retrofit |
|||

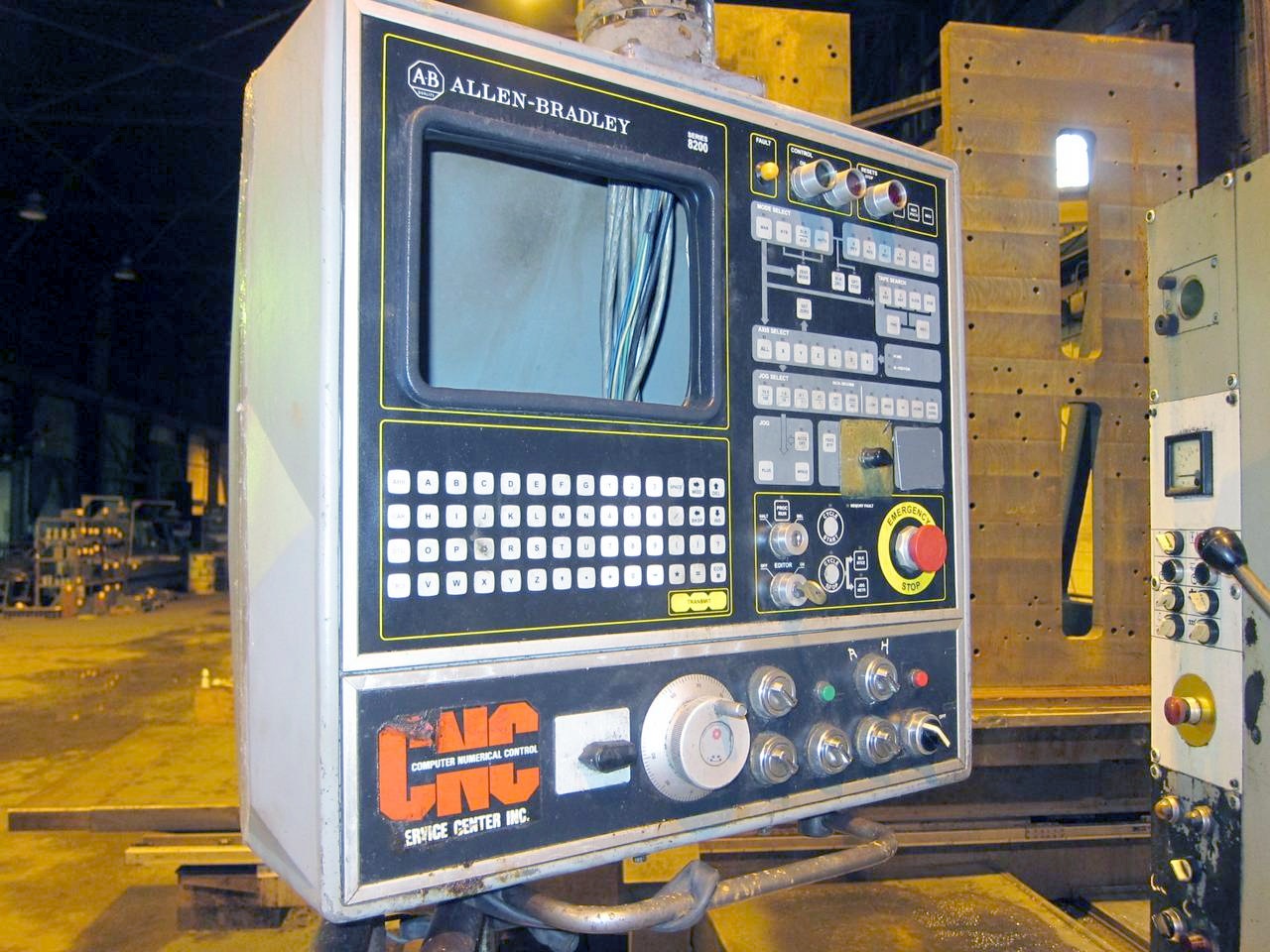

Control |
New Fanuc full-contouring CNC |
|||

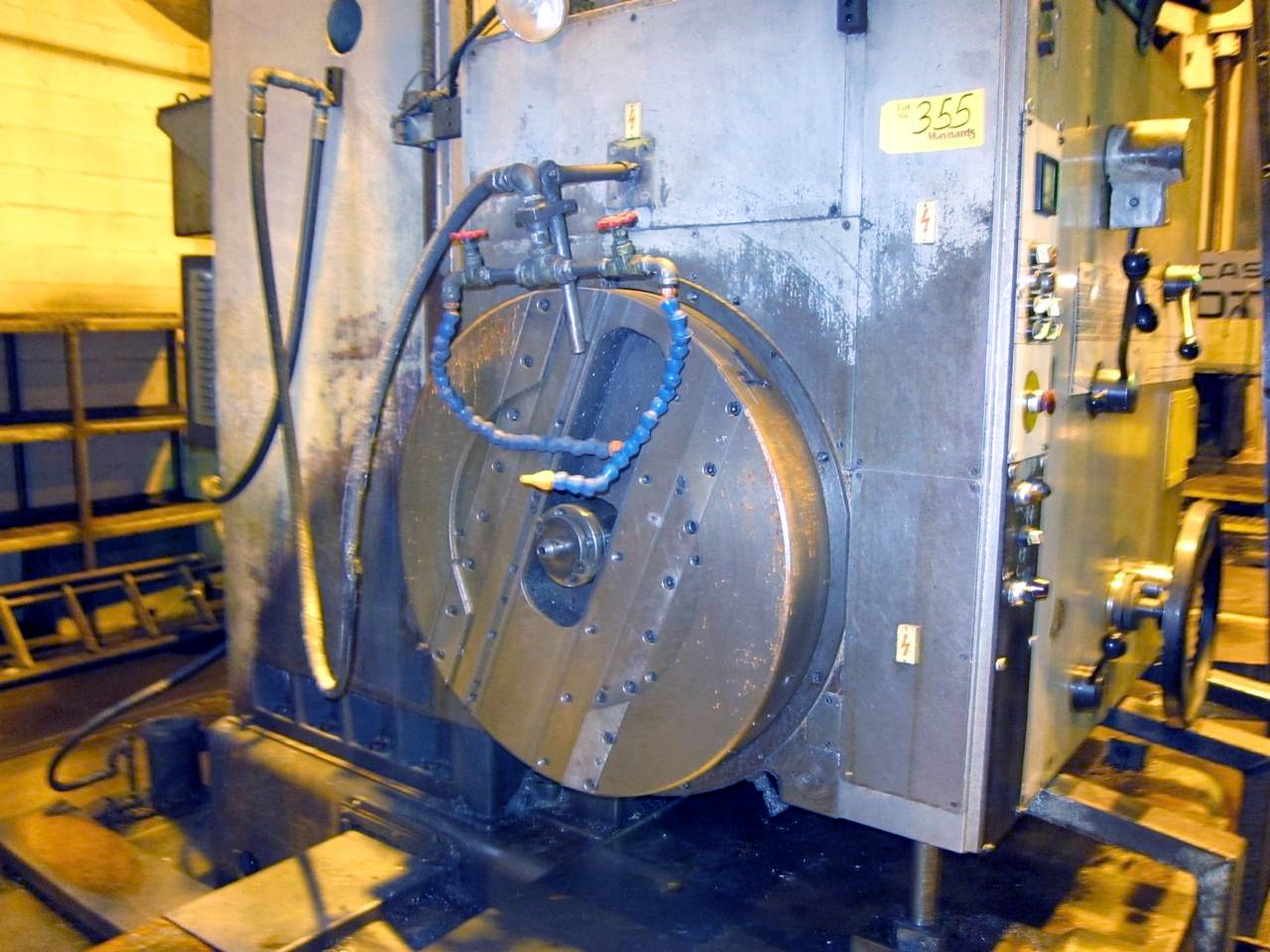

U-Axis Facing Head Travel |
12.5 |
in |
152.40 |
mm |
X – Axis Table Travel |
108.27 |
in |
1778.00 |
mm |
Y – Axis Vertical Travel |
98.43 |
in |
1828.80 |
mm |
Z – Axis Saddle Travel |
98.43 |
in |
914.40 |
mm |
W – Spindle Travel |
36.00 |
in |
1270.00 |
mm |
B – Table Rotation |
360,000 position |
|||
Rapid Travel Speed |
200.00 |
in/min |
5080.00 |
mm/min |
Table Width |
78.74 |
in |
2000.00 |
mm |
Table Length |
70.87 |
in |
1800.10 |
mm |
Table Capacity |
20000 |
lbs |
9090.91 |
kg |
Rotary Table |
70.87 in (1,800 mm) x 78.74 in (2,000 mm), 360,000 positions |
|||
Spindle Diameter |
5.13 |
in |
130.18 |
mm |
Spindle Taper |
ISO 50 |
|||
Spindle Power |
63 HP continuous |
|||
Spindle Speed |
6.3 – 1,200 RPM infinitely variable |
|||
Tool Changer |
None |
|||
Ways |
Hardened |
|||
Chip Conveyor |
None |
|||
Coolant |
Yes |
|||
Way Covers |
Metal telescoping Steelflex way covers |
|||
Power |
3 ph / 60 Hz / 460 V, existing |
|||
Additional |

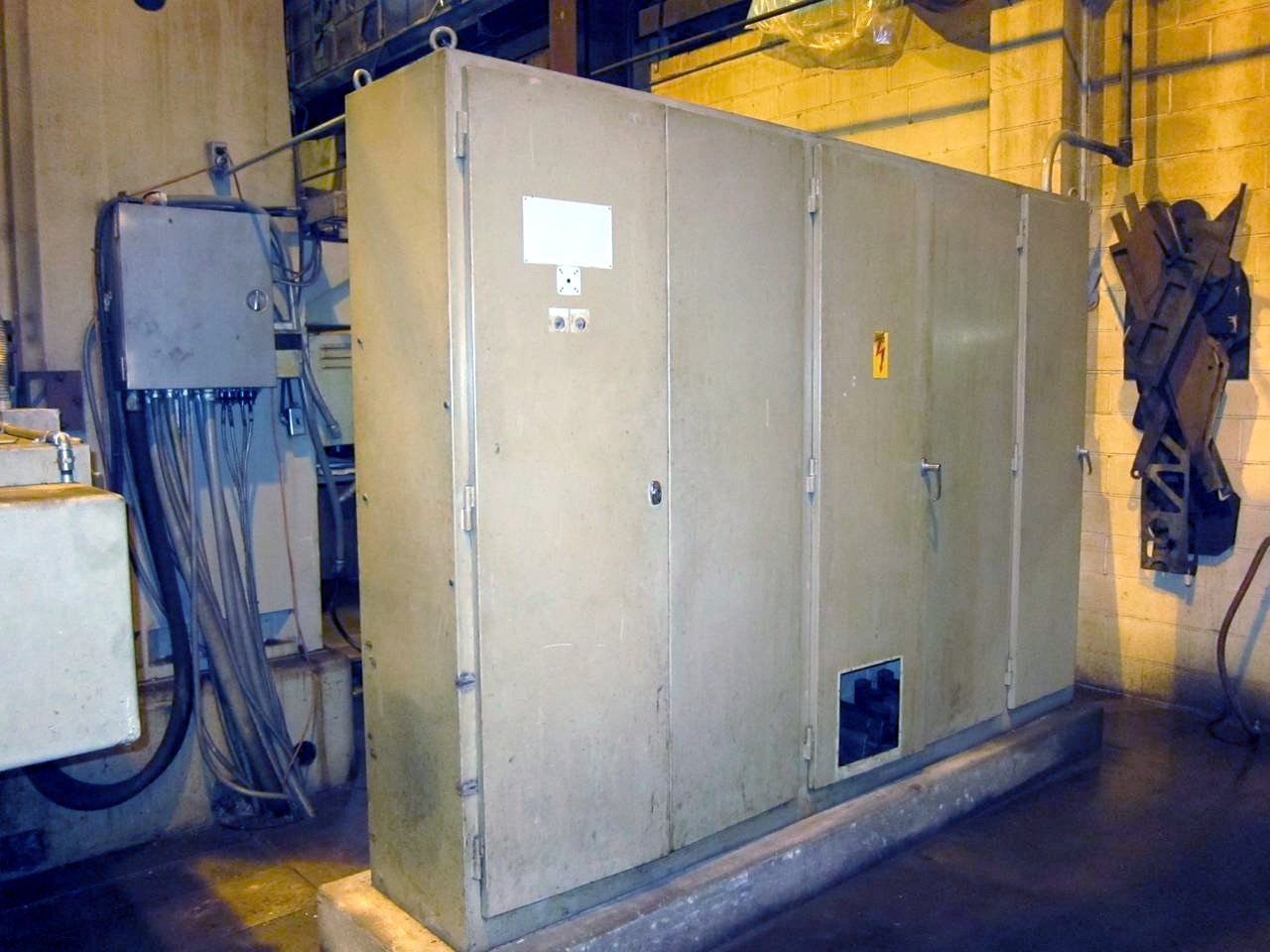

Power locks, outriggers, new Fanuc servo motors and drives, new spindle drive, new magnetics cabinet, built-in facing head, heavy-duty swiveling right-angle head, spindle support extension |
|||
Machine Length |
240.00 |
in |
6096.00 |
mm |
Machine Width |
180.00 |
in |
4572.00 |
mm |
Machine Height |
180.00 |
in |
4572.00 |
mm |
Machine Weight |
81400 |
lbs |
37000 |
kg |
Condition |
Excellent, rebuilt |
